Introduction

Welcome to the official documentation of the CHeT Analysis Library. This software framework is developed for the simulation, reconstruction, and data analysis of the Cylindrical Helix Tracker (muEDM).

The library provides comprehensive tools to:

• Define detector geometry (cylinders, layers, fibers).
• Handle coordinate transformations (Local <-> Global frames).
• Visualize events in 2D and 3D using ROOT.
• Read and filter raw data efficiently via RDataFrame.

Visualization

The library includes visualization tools for event debugging and analysis.

3D Visualization

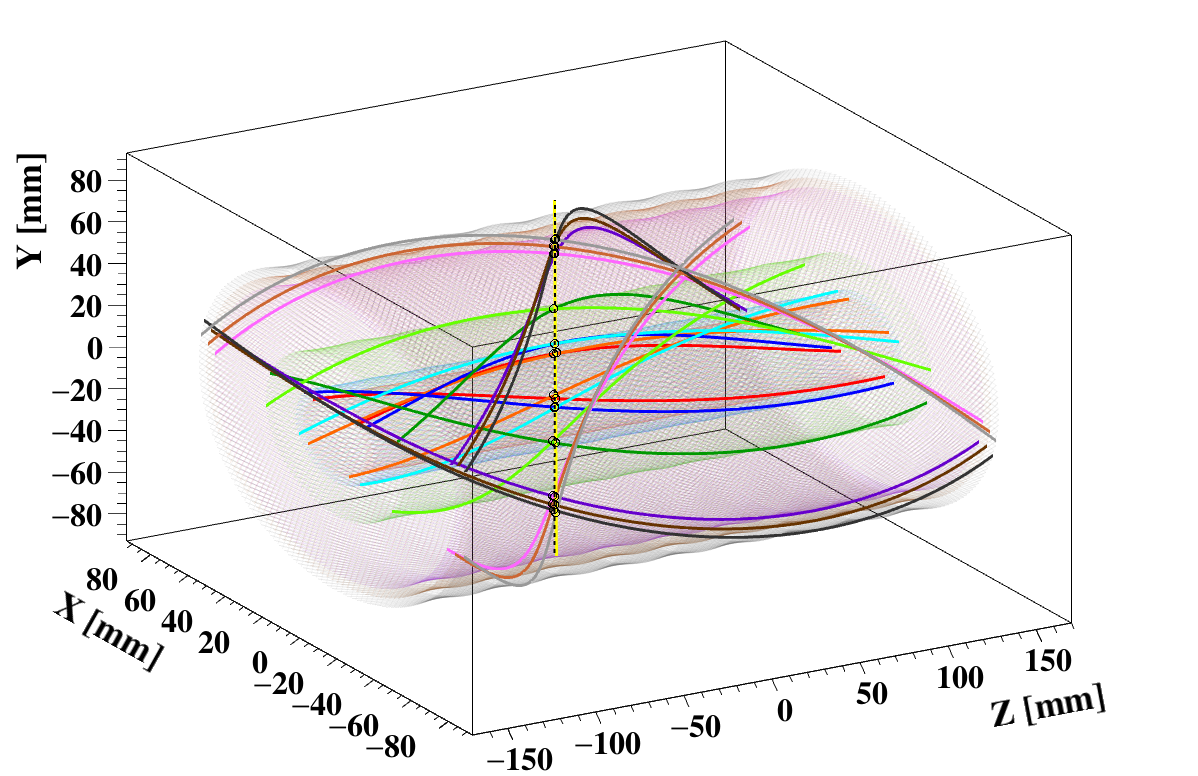

Full view of the detector showing reconstructed tracks and active cylinders.

2D Projections

Unrolled maps (Phi-Z) and transverse projections for intersection analysis.

Core Modules

The codebase is organized into the following namespaces:

• CHeT::Config (CHeT::Config)
  Manages the geometric configuration and mapping ("Global Settings"). It contains definitions for CylinderConfig, LayerConfig, and coordinate transformation functions.
• CHeT::Vis (CHeT::Vis)
  ROOT-based visualization engine. Provides Draw3D for spatial viewing and Draw2D for projections and unrolled maps.
• CHeT::Data (CHeT::Data)
  I/O Interface. The Reader class wraps ROOT::RDataFrame to enable efficient loading, filtering (time cuts, board selection), and creation of high-level estimators.

Quick Example

Here is a minimal example of how to initialize the geometry and visualize an event:

#include "CHeT/CHeTGlobalSettings.hh"
#include "CHeT/CHeTVisualizer.hh"

void AnalyzeEvent() {
    // 1. Geometry Configuration
    CHeT::Config::SetRotation(0.1, 0.0, 0.0); // Example rotation
    std::vector<int> active_cyls = {0, 1};
    CHeT::Config::SetActiveCylinders(active_cyls);

    // 2. Data Simulation (or reading from Reader)
    std::vector<int> hits = {100, 105, 200}; // Global fiber IDs

    // 3. Visualization
    CHeT::Vis::Draw3D(hits, {}, {}, true); // Draw hits and skeleton
    CHeT::Vis::Draw2D(hits);               // Draw projections
}

Installation

Ensure that ROOT 6 is installed and configured in your CMAKE_PREFIX_PATH. The library relies on ROOT for both I/O and graphical rendering.

Author

Lorenzo

Date

06/03/2024
